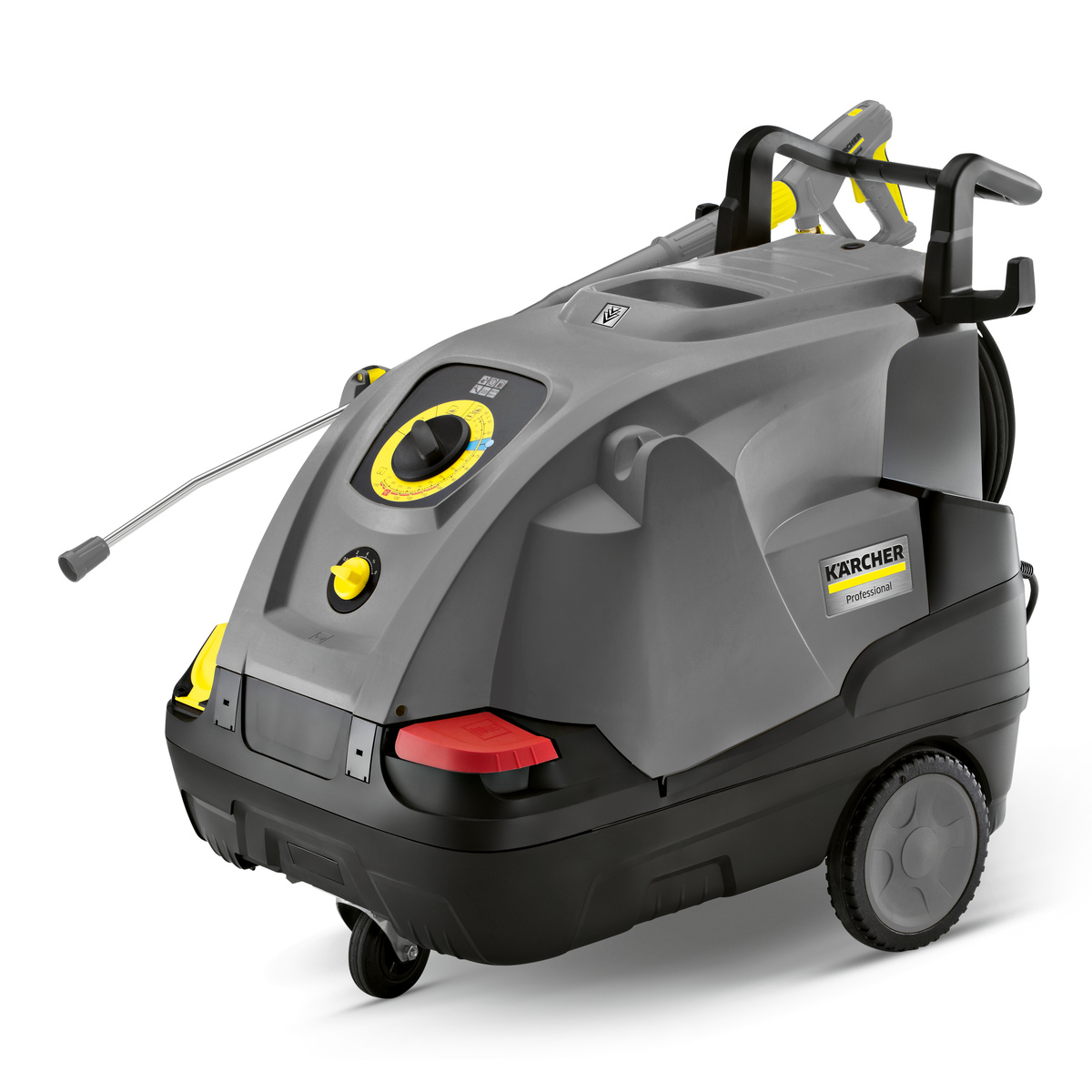

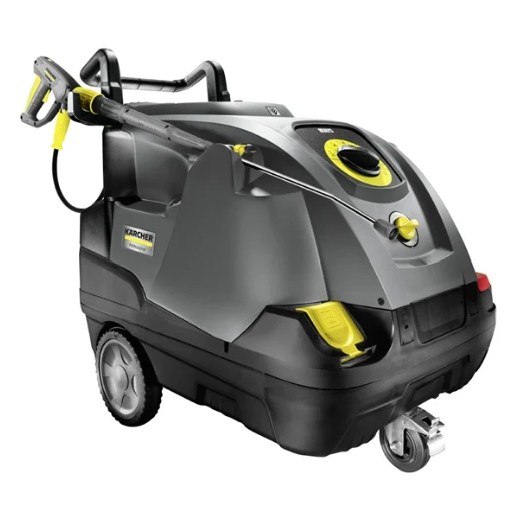

State-of-the-art compact hot water high-pressure cleaners with eco!efficiency mode that reduces diesel consumption by 20% without compromising daily cleaning performance. Kärcher’s unique Machine Protector system prolongs component life and provides a 3-year burner coil warranty. With central one-button operation, excellent mobility and superb cleaning performance they are easy to set-up, intuitive to operate and cheap to run. Machines can be used in steam mode up to 155°C.
Efficiency
eco!efficiency mode — economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO2 emissions by 20%. Precise detergent dosing unit with rinse function.
Ease of use
Intuitive operation with large single-button selector switch. Large tank opening with filling chute. System care bottle can be changed conveniently from the outside.
Storage
Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cord and high-pressure hose. Integrated lance holder for easy transport.
Reliability
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
- Large water filter protects pump against damage.
- Water softening system protects the heating coil against calcification damage.
Mobility
- Jogger principle with large wheels and steering roller.
- Large integrated handles in the chassis.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.
Technical data
| Current type (Ph/V/Hz) | 1 / 240 / 50 |
| Flow Rate (l/h) | 240 - 560 |
| Operating pressure (bar/MPa) | 30 - 120 / 3 - 12 |
| Temperature (supply 12°C) (°C) | min. 80 - max. 155 |
| Power rating (kW) | 3 |
| Consumption fuel oil (kg/h) | 3.5 |
| Heating oil consumption, eco!efficiency (kg/h) | 2.8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 107.4 |
| Weight incl. packaging (kg) | 115.6 |
| Dimensions (L x W x H) (mm) | 1060 x 650 x 920 |
